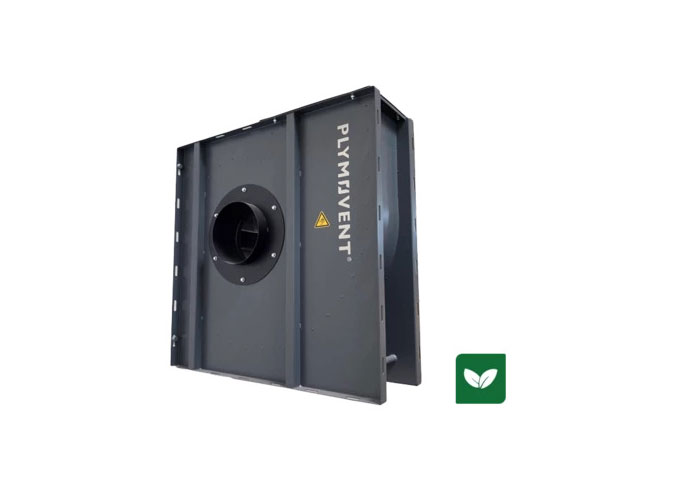

• TEV-50Hz 1
  • TEV-50Hz 2

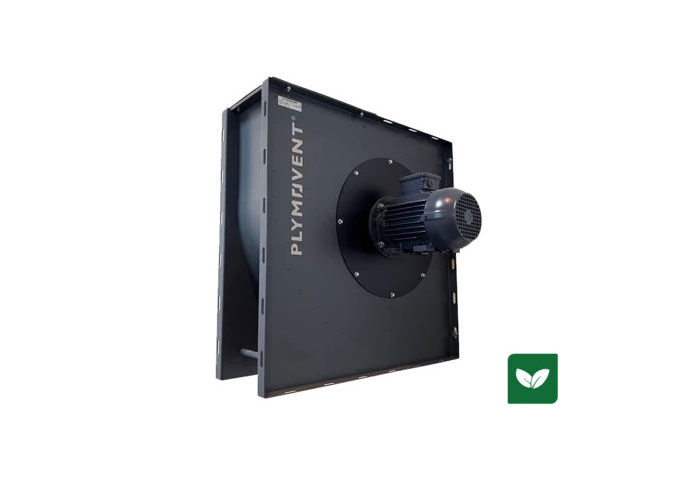

  • TEV-50Hz 3

TEV 50Hz

Product Ref: TEV-50Hz
Price

£POA

Description

The TEV series ventilation fans are designed for use as central fans in larger systems with multiple extraction points. 0.75-7.5 kW (1.0-10.0 hp)

Features

  • High efficiency
  • Energy saving
  • Easy mount housing

The TEV is an energy saving central fan

The TEV series ventilation fans are designed for use as central fans. These fans are equipped with lightweight aluminium impellers, suited to exhaust gases, volatile fumes and dust. Matched inlet and outlet areas, together with the optimized impellers, ensure even airflow, high capacity and low noise level.

Step up your game against exhaust gas, welding fumes, dust and oil mist with one of these options

  • TEV-385; 0,75 kW (1 HP), 32 kg (71 lbs)
  • TEV-585; 2,2 kW (3 HP), 51 kg (112 lbs)
  • TEV-765; 4 kW (5 HP), 71 kg (157 lbs)
  • TEV-985; 7,5 kW (10 HP), 81 kg (179 lbs)

Features

  • High efficiency
  • Energy saving
  • Easy mount housing
  • Controllable by frequency inverter

Recommended for

  • Big extraction system with multiple extraction points for removal of vehicle exhausts, welding fumes, oil mist or dust.



TEV 50Hz Certificate (Section 1)

The TEV is in accordance with the following directives:

  • Machine Directive 2006/42 EC
  • LVD 2014/35 EU
  • ErP Directive 2009/125 EC



TEV 50Hz Certificate (Section 2)

Directive 2011/65/EC (RoHS) valid as of 8 June 2011

TEV 50Hz Certificate (Section 3)

Plymovent certifies that the products shown herein are licensed to bear the AMCA Seal. The ratings shown comply with the requirements of the AMCA Certified Ratings Program.

TEV 50Hz Certificate (Section 4)

Certified motor

TEV 50Hz Certificate (Section 5)

Certified motor

Specifications

Physical dimensions and properties

Material:

  • impeller - aluminum
  • housing - powder coated galvanized sheet metal

Colour:

  • motor - black (RAL 9005)
  • housing - grey (RAL 7011)

Motor design - IEC 60072

Discharge position - rotatable 90°

Fan type - radial

Design conditions - 20°C (68°F) at sea level

Max. airflow temperature - 80°C (176°F)

Performance

Speed - 2800 rpm

Electrical data

Max. start/stops per hour - 30

Insulation class - F

Protection class - IP 55

Ambient conditions

Operating temperature:

  • min. - 5°C (41°F)
  • nom. - 20°C (68°F)
  • max. - 40°C (104°F)

Max. relative humidity - 80%

Storage conditions

  • storing temperature - 5-40°C (41-104°F)
  • relative humidity - max. 80%

Product combinations

Vehicle exhaust extraction systems - all systems

Filter units - all systems

Fume extraction systems - all systems

Control equipment - all systems

Scope of supply

Extraction fan

Order information
Number/package - 1

Shipping data

Harmonized Tariff Code - 8414.5940.90
Country of origin - the Netherlands
