MNF

Description

The MNF is a portable extraction fan for use in welding operations in vessels and other confined spaces used for light to medium-intensity welding. 0.75 kW / 1 Hp

Features

• Designed to reach confined spaces and excessive heights
• Portable
• Efficient extraction

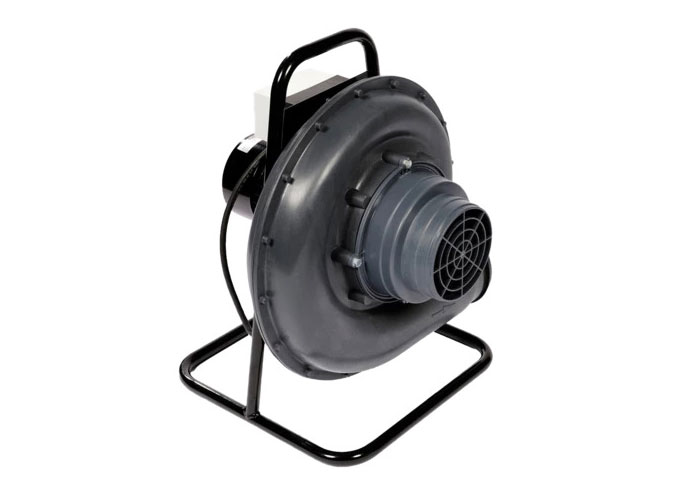

The MNF is a portable fan designed for usage in confined spaces

Welding operations sometimes take place in confined spaces such as pipe structures or tanks. In these cases the use of a mobile extraction unit is not practical and the work location cannot be accessed with a fixed unit. The MNF can be combined with flexible extraction and exhaust hoses. Equipped with a 0.75 kW motor.

This fan needs a partner in crime

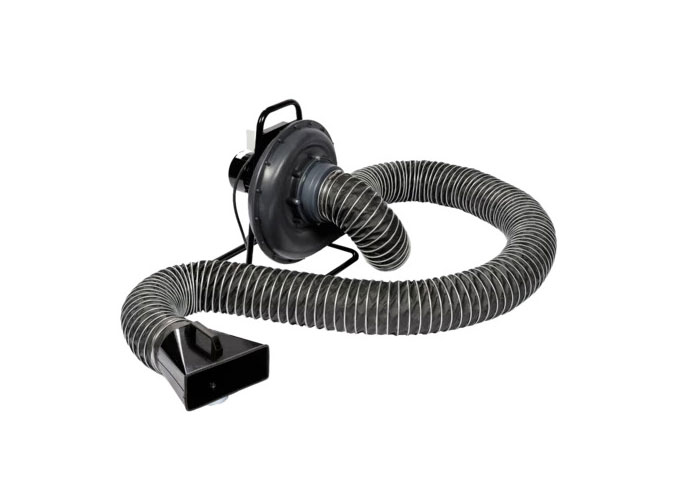

The MNF standardly comes with the extraction hose:

• SUS 5 m

A flexible extraction hose used to extract welding fumes from confined spaces. This extraction hose can be extended with another 5 meters to reach a total of 10 meters!

Features

• Portable
• Efficient extraction

Recommended for

• One extraction point for light to medium-intensity welding processes
• Welding in confined spaces
• Welding at excessive heights

The MNF is in accordance with the following directives:

• Machine Directive 2006/42 EC
• LVD 2014/35 EU
• ErP Directive 2009/125 EC



Specifications

Physical dimensions and properties

Material (housing):

• housing - polypropylene
• frame - powder coated steel

Colour:

• housing - grey RAL 7024
• motor - black RAL 9005
• frame - black RAL 9005

Inlet diameter - Ø 160 mm (6¼ in.)
Outlet diameter - Ø 160 mm (6¼ in.)
Weight (net) - 17 kg (37½ lbs)

Supply cable

• length - 6 m (19⅝ ft)
• plug - not included

Performance

Fan type - radial

Unrestricted airflow - 2400 m3/h (1413 CFM)
Net extraction capacity:

• MNF + SUS-5/160 - 1300 m3/h (765 CFM)
• MNF + SUS-5/160 + EXS-5/160 - 1150 m3/h (677 CFM)

Speed - 2800 rpm

Noise level (incl. SUS-5/160) - 69 dB(A) according to ISO 3746

Electrical data

Power consumption - 0,75 kW (1 HP)

Available connection voltages

115V/1ph/50Hz (115)
115V/1ph/60Hz (116)
230V/1ph/50Hz (215)
230V/3ph/50Hz (235)
400V/3ph/50Hz (435)
400V/3ph/60Hz (436)

Insulation class - F
Protection class - IP 55

Ambient conditions

Process temperature:

• min. - 5°C (41°F)
• nom.. - 20°C (68°F)
• max.. - 45°C (113°F)

Max. relative humidity - 80%
Suitable for outdoor use - no

Storage conditions

• Storing temperature - 5-45°C (41-113°F)
• relative humidity - max. 80%

Product combinations

SUS-5/160 (compulsary) - flexible extraction hose 5 m (16⅜ ft)

Available options

EXS-5/160 - exhaust/extension hose 5 m (16⅜ ft) (max. hose length: total 20 m / 65⅝)

Scope of supply

Portable fan | Hardware

Order information

Article numbers:

7130800000 - MNF 115V/1ph/50Hz
7130801000 - MNF 115V/1ph/60Hz
7130200000 - MNF 230V/1ph/50Hz
7130300000 - MNF 230V/3ph/50Hz
7130500000 - MNF 400V/3ph/50Hz
7130520000 - MNF 400V/3ph/60Hz

Number/package - 1

Shipping data

Gross weight - 20 kg (44 lbs)
Packing dimensions - 500 x 600 x 500 mm (19⅝ x 23⅝ x 19⅝ in.)
Max. number/pallet - 8414.5940.90
Harmonized Tariff Code - Netherlands
