FUA

Product Ref: FUA
Price

£POA

Description

The fans in the FUA series can be used as a direct mount fan for metal and hose tube extraction arms or as a central fan in small extraction systems.

Features

  • Low noise level
  • Direct mount
  • Rotational outlet

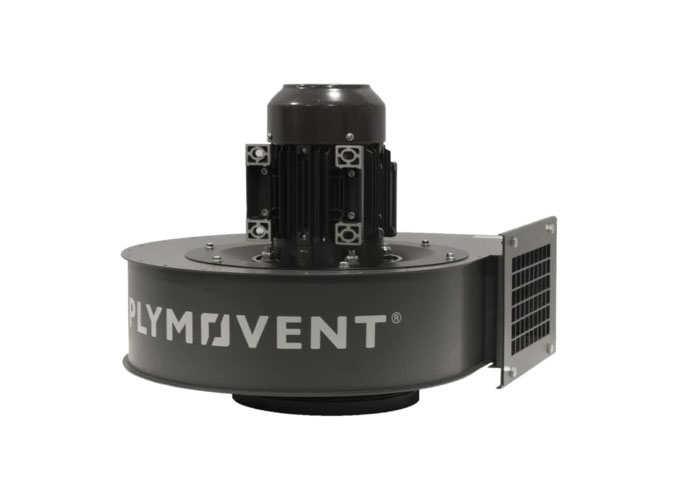

The FUA is a flexible direct-mount fan for Plymovent's systems

The FUA series ventilation fans are designed for direct mounting on our metal- and hose tube extraction arms and filters or for use as central fans. These fans are equipped with lightweight aluminium impellers, suitable for extracting exhaust gases, volatile fumes and dust. Matched inlet and outlet areas provide, together with the optimized impellers, an even airflow, high capacity and low noise level.

This fan needs a partner in crime

The FUA can be attached to the following extraction arms:

Hose tube extraction arm recommended for; maintenance welding, low usage and workbench applications.

Metal tube extraction arm recommended for; maintenance- and production welding and workbench applications. Ideal for medium-sized workplaces.

Metal tube extraction arm recommended for; production welding, plasma cutting and dust/ mist collection.

Telescopic hose tube extraction arm recommended for; maintenance welding, welding booths and benchwork.

Step up your game against exhaust gas, welding fumes, dust and oil mist with one of these options

  • FUA-1800; 0.75 Hp / 0.55 kW
  • FUA-2100; 1 Hp / 0.75 kW
  • FUA-2700; 1.5 Hp / 1.1 kW
  • FUA-3000; 2 Hp / 1.5 kW
  • FUA-4700; 3 Hp / 2.2 kW

Features

  • Direct mount
  • Low noise level
  • Rotational outlet

Recommended for

  • Small extraction systems for vehicle exhausts removal, welding fumes, oil mist and dust.



FUA Certificate (Section 1)

The FUA is in accordance with the following directives:

  • Machine Directive 2006/42 EC
  • EMC 2014/30 EU
  • LVD 2014/35 EU
  • ErP Directive 2009/125 EC



FUA Certificate (Section 2)

Directive 2011/65/EC (RoHS) valid as of 8 June 2011

Specifications

FUA 50Hz

Physical dimensions and properties

  • Material:
  • fan - aluminium
  • housing - sheet metal
  • Colour:
  • motor - black (RAL 9005)
  • housing - grey (RAL 7011)
  • Motor design - IEC 60072
  • Fan type - radial
  • Design conditions - 20°C (68°F) at sea level
  • Max. airflow temperature - 80°C/176°F

Performance

  • Speed - 2800 rpm
  • Max. starts/stops per hour - 30

Electrical data

  • Insulation class - F
  • Protection class - IP 55

Ambient conditions

  • Operating temperature:
  • min. - 5°C (41°F)
  • nom. - 20°C (68°F)
  • max. - 40°C (104°F)
  • Max. relative humidity - 80%
  • Outdoor use allowed - no
  • Storage conditions - 5-40°C (41-104°F), relative humidity max. 80%

Scope of supply

  • Fan – Connection flange with grid

Shipping data

  • Harmonized Tariff Code - 8414.5940.90
  • Number/package - 1

FUA 60Hz

Physical dimensions and properties

  • Material:
  • fan - aluminium
  • housing - sheet metal
  • Colour of housing - grey (RAL 7035)
  • Motor design - NEMA
  • Fan type - centrifugal
  • Impeller - backward inclined
  • Design conditions - 20°C (68°F) at sea level
  • Max. airflow temperature - 80°C/176°F

Performance

  • Max. starts/stops per hour - 30

Ambient conditions

  • Operating temperature:
  • min. -20°C (-4°F)
  • nom. 20°C (68°F)
  • max. 40°C (104°F)
  • Max. relative humidity - 80%
  • Outdoor use allowed - no
  • Storage conditions -20 to 40°C (-4 to 104°F), relative humidity max. 80%

Scope of supply

  • Extraction fan

Shipping data

Harmonized Tariff Code - 8414.5940.90
Number/package - 1
