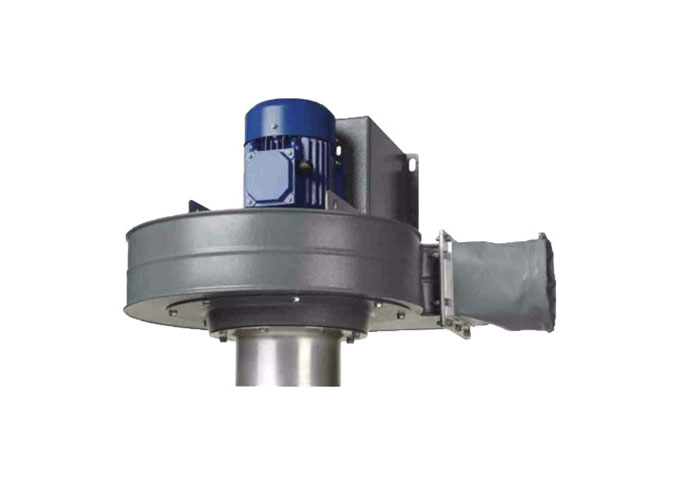

FAN-42

Product Ref: FAN-42
Price

£POA

Description

The FAN-42 is a wall-mounted extraction fan that provides extraction for plastic tube extraction arms being part of a small central filter system. 1.5 kW (2 HP)

Features

  • Low noise level
  • Own mounting bracket
  • Efficient
  • Mostly used with the extention crane and stationary filter

The FAN 42 is an extraction fan used for small welding fume extraction systems

The FAN 42 is a wall-mounted extraction fan that provides extraction for plastic tube extraction arms: being part of a small central filter system; or connected to a 2 or 4 m extension crane (with or without filtration).

Find a friend for this (lonely) fan

The FAN-42 can be attached to the following extraction arms:

For standard welding applications at workbenches and in small, fixed workingplaces. More precise positioning due to the counterweight.

Flexible arm for low to standard number of position changes.

Ultraflexible arm for standard to high number of position changes.

The SFD is a wall-mounted filter unit for welding fume extractions systems.

The SFS is a wall-mounted welding fume extractor with a self-cleaning filter.

Features

  • Own mounting bracket
  • Low noise level
  • Efficient

Recommended for

  • A small welding fume extraction system
  • Welding processes with medium to high intensity



FAN-42 Certificate (Section 1)

The FAN-42 is in accordance with the following directives:

  • Machine Directive 2006/42 EC
  • LVD 2014/35 EU
  • ErP Directive 2009/125 EC



FAN-42 Certificate (Section 2)

Directive 2011/65/EC (RoHS) valid as of 8 June 2011

Specifications

Physical dimensions and properties

Material - steel

Colour:

  • housinggrey
  • motorblue

Inlet diameter - Ø 200 mm (Ø 7⅞ in.)

Outlet diameter - Ø 160 mm (Ø 6¼ in.)

Weight (net) - 34 kg (75 lbs.)

Performance

Fan type - radial

Unrestricted airflow - 3000 m3/h (1750 CFM)

Speed:

  • 50Hz2800 rpm
  • 60Hz3400 rpm

Noise level - 72 dB(A) according to ISO 3746

Electrical data

Power consumption - 1,5 kW (2 HP)

Available connection voltages - refer to Order information

Max. start/stops per hour - 30

Insulation class - F

Protection class - IP 55

Ambient conditions

Operating temperature:

  • min. - 5°C (41°F)
  • nom. - 20°C (68°F)
  • max. - 45°C (113°F)

Max. relative humidity - 80%
Outdoor use allowed - no

Storage conditions

  • storing temperature - 5-45°C (41-113°F)
  • relative humidity - max. 80%

Product combinations

T-Flex/CW - telescopic extraction arm

Flex-3/4 (+ NEC-2/4) - flexible extraction arm (+ extension crane)

UltraFlex-3/4 (+ NEC-2/4) - ultraflexible extraction arm (+ extension crane)

Available options

Motor protection switch (MPS) for FAN-42:

  • 230V/3~/50Hz - MPS 4.0-6.3A
  • 400V/3~/50Hz - MPS 2.5-4.0A
  • 208-230V/460V/3~/60Hz - MPS 2.5-4.0A

Thermal relay (NTR) for FAN-42: (CB / CB-WCS +)

  • 230V/3~/50Hz - NTR 4.2-5.7A
  • 400V/3~/50Hz - NTR 2.3-3.1A
  • 208-230V/460V/3~/60Hz - NTR 2.3-3.1A

Scope of supply

Extraction fan incl. inlet and outlet flange - Flexible hose 1,5 m Ø 200 mm - Connection flange Ø 160-200 mm - Bush (2) - Hose clamp (2) - Hardware

Order information

Article numbers:

FAN-42/RD: Article no.:
230V/3~/50Hz (235) - 7906010050
400V/3~/50Hz (435) - 7906010010
208-230V/460V/3~/60Hz (default: 460V) - 7905220820
FAN-42/LG: Article no.:
230V/3~/50Hz - 7906020050
400V/3~/50Hz - 7906020010
Number/package - 1

Shipping data

Gross weight - 37 kg (82 lbs.)

Packing dimensions - 800 x 1200 x 650 mm (31.5 x 47.2 x 25.6 in.)

Max. number/pallet - 2

Harmonized Tariff Code - 8414.5940.90

Country of origin - the Netherlands
