FAN-28

Product Ref: FAN-28
Price

£POA

Description

The FAN-28 is a wall-mounted extraction fan that provides extraction for plastic tube extraction arms with and without filtration. 0.75 kW

Features

  • Low noise level
  • Direct-mount on 1 extraction arm
  • Optional automatic start and stop
  • Mostly used with the UltraFlex, Flex, T-Flex extraction arms

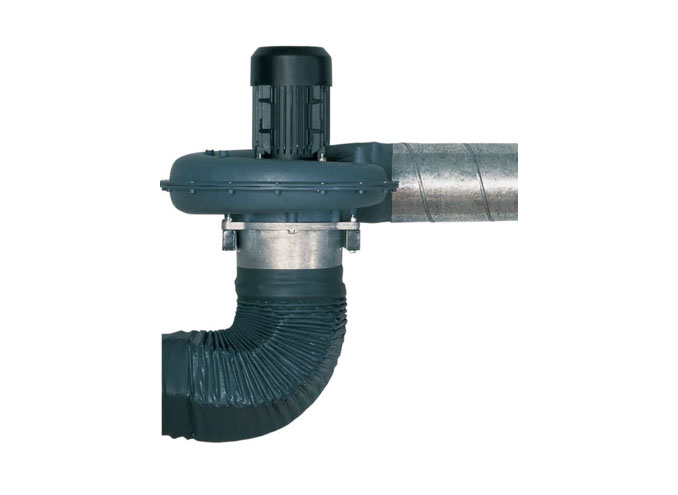

FAN-28 is a wall-mounted extraction fan

FAN-28 is especially designed to fit the large diameter (200mm) arms in our extraction arm program. By fitting individual fans to each extraction arm, optimum extraction is guaranteed and you remain flexible when the layout of the factory changes. The FAN-28 is a wall-mounted extraction fan that provides extraction for T-Flex, T-Flex/CW, Flex and UltraFlex extraction arms with or without filtration.

Recommended for

  • One extraction point
  • Welding processes with light to medium intensity

Features

  • Low noise level
  • Direct-mount on 1 extraction arm
  • Efficient
  • Optional automatic start and stop

This fan needs a partner in crime

Combine the FAN-28 with one of the following extraction arms:

For standard welding applications at workbenches and in small, fixed workingplaces.

For standard welding applications at workbenches and in small, fixed workingplaces. More precise positioning due to the counterweight.

Flexible arm for low to standard number of position changes.

Ultraflexible arm for standard to high number of position changes.

FAN-28 Certificate (Section 1)

The FAN-28 is in accordance with the following directives:

  • Machine Directive 2006/42 EC
  • LVD 2014/35 EU
  • ErP Directive 2009/125 EC



FAN-28 Certificate (Section 2)

Directive 2011/65/EC (RoHS) valid as of 8 June 2011

Specifications

Physical dimensions and properties

Material housing - polypropylene
Colour:

  • housing- grey RAL 7024
  • motor - black RAL 9005

Inlet diameter - Ø 200 mm (Ø 7⅞ in.)
Outlet diameter - Ø 160 mm (Ø 6¼ in.)
Weight (net) - 15 kg (33 lbs.)

Performance

Fan type - radial
Unrestricted airflow - 2400 m3/h (1413 CFM)
Speed:

  • 50Hz- 2800 rpm
  • 60Hz- 3400 rpm

Noise level - 69 dB(A) according to ISO 3746

Electrical data

Power consumption - 0,75 kW (1 HP)
Available connection voltages - refer to Order information
Max. start/stops per hour - 30
Insulation class - F
Protection class - IP 55

Ambient conditions

Operating temperature:

  • min. - 5°C (41°F)
  • nom. - 20°C (68°F)
  • max. - 45°C (113°F)

Max. relative humidity - 80%
Outdoor use allowed - no

Storage conditions

  • storing temperature - 5-45°C (41-113°F)
  • relative humidity - max. 80%

Product combinations

T-Flex - telescopic extraction arm
T-Flex/CW - telescopic extraction arm
Flex-2/3/4 - flexible extraction arm
UltraFlex-3/4 - ultraflexible extraction arm
TNB/NMB - wall mounting bracket

Available options

SAS-160 - silencer; noise reduction 5 dB(A)

Motor protection switch (MPS) for FAN-28:

  • 115V/1~/50Hz- MPS 10-16A
  • 230V/1~/50Hz- MPS 4.0-6.3A
  • 230V/3~/50Hz- MPS 2.5-4.0A
  • 400V/3~/50Hz- MPS 1.6-2.5A
  • 120V/1~/60Hz- MPS 6.3-10A
  • 230V/1~/60Hz- MPS 4.0-6.3A
  • 230V/3~/60Hz- MPS 2.5-4.0A
  • 400V/3~/60Hz- MPS 1.6-2.5A

Thermal relay (NTR) for FAN-28: (CB / CB-WCS +)

  • 115V/1~/50Hz - NTR 10-13A
  • 230V/1~/50Hz - NTR 4.2-5.7A
  • 230V/3~/50Hz - NTR 2.3-3.1A
  • 400V/3~/50Hz - NTR 1.3-1.7A
  • 120V/1~/60Hz - NTR 7.6-10A
  • 230V/1~/60Hz - NTR 4.2-5.7A
  • 230V/3~/60Hz - NTR 3.1-4,2A
  • 400V/3~/60Hz - NTR 1.7-2.3A

Scope of supply

Fan - Hardware

Order information

Article number:

  • 115V/1~/50Hz (115) - 7905220020
  • 230V/1~/50Hz (215) - 7905220010
  • 230V/3~/50Hz (235) - 7905220050
  • 400V/3~/50Hz (435) - 7905220040
  • 120V/1~/60Hz (116) - 0000102540
  • 230V/1~/60Hz (216) - 7905222030
  • 230V/3~/60Hz (236) - 7905222020
  • 400V/3~/60Hz (436) - 7905222040

Number/package - 1

Shipping data

Gross weight - 18 kg (39¾ lbs.)
Packing dimensions - 550 x 550 x 400 mm (21½ x 21½ x 15¾ in.)
Max. number/pallet - 10
Harmonized Tariff Code - 8414.5940.90
Country of origin - the Netherlands
