FlexMax Extension Crane
Product Ref: 101245
Long reach
Description

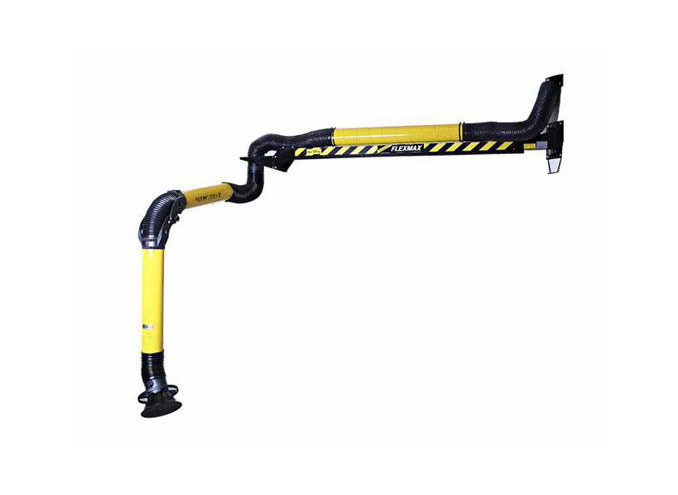

FlexMax™ is an extension crane that is connected to an EconomyArm or KUA extraction arm. Combined with an extraction arm, it has a radius of about 9 meters. FlexMax™ is the perfect extension to your welding arm to cover large working areas with a low ceiling.
It is unmatched in its ability to reach high positions and locations far from the arm’s mounting position. Very handy when it comes to reaching into and under workpieces, or when you need to mount the arm at a lower height.
Extend the reach of your extraction arm

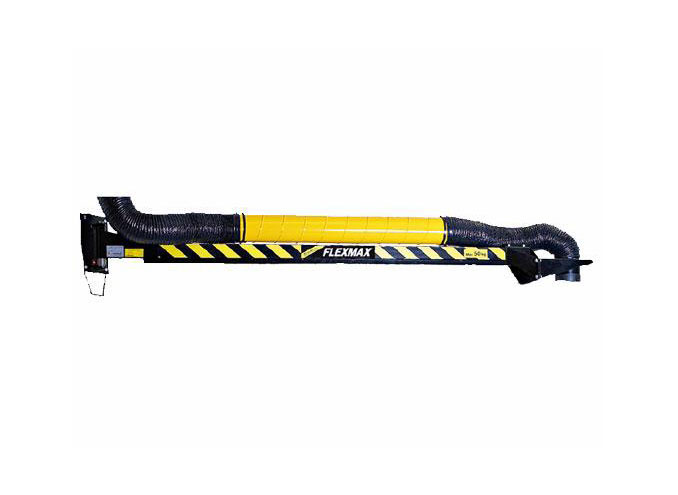

The crane consists of a frame with a metal tube with a maximum length of 4,5 m. The wall hinge provides utmost flexibility. The crane is provided with hooks for the suspension of e.g. a wire feeder, cables and tools.
Highlights
- Extension crane for EconomyArm and KUA extraction arms
- Covers large working areas
- Reaches above its mounting height
- Extra reach of max. 4,5 m
Features
- Universal mounting bracket with ball-bearing and friction pad allows for 360 degree rotation, ease of maneuvering and ensures maximum life-span
- Support mechanism ensures stability, smooth operation and minimum restriction
- Inner arm can carry tools and accessories up to 50 kg
- The hood can be positioned anywhere within a radius of about 9 m and up to 8 m in height (largest model)
Recommended for

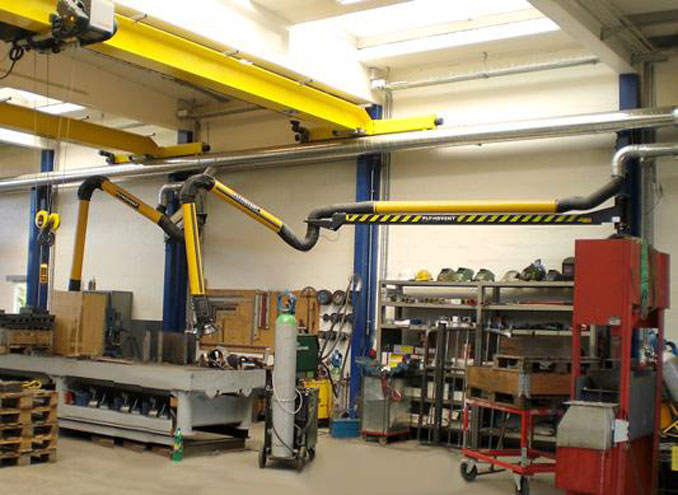

- Maintenance and production welding for large working areas.
- Extend the reach of EconomyArm and KUA extraction arms.
